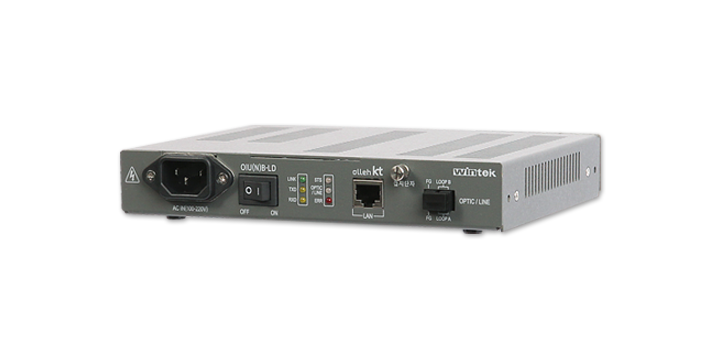

OIU(N)B-LD
- Introduction of product

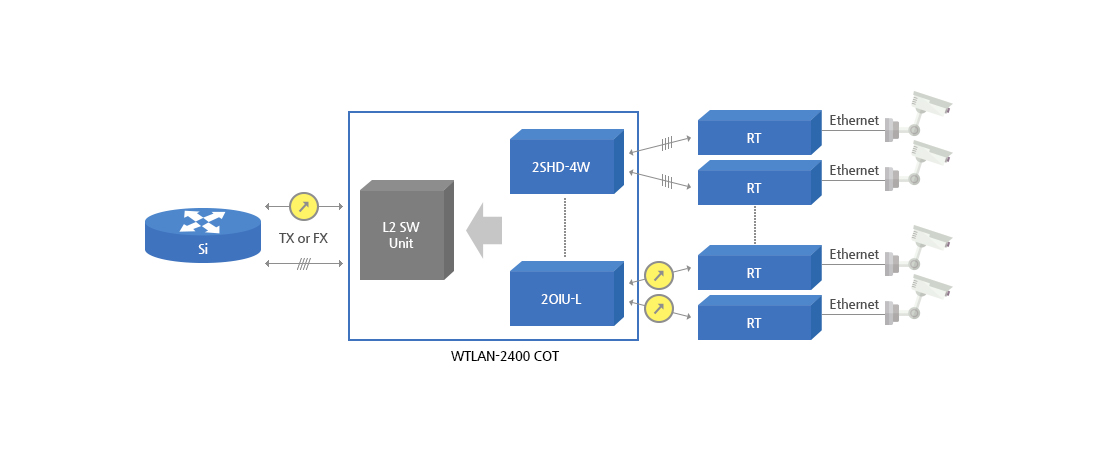

- OIU(N)B-LD is the device to transmit the Ethernet data of maximum 12Mbps to high rank 2OIU(N)-L device with the maximum distance of 15Km~40Km through optical line.
- Characteristice of product
- In the case of C type, up to the maximum of 40km can be transmitted.
- Self diagnosis is possible without measuring instrument through various LoopBack and TPG.
- Current state of device can be monitored through LED.
- Remote control function with which subscriber side device can be controlled at remote location
| Item | Standard | ||
|---|---|---|---|
| Optic | Type | B(For 15km) | C(For 40km) |
| Transmission method | WDM | WDM | |
| Transmission mode | Single | Single | |
| Line velocity | 5M ~12Mbps Limits | 5M ~12Mbps Limits | |
| Transmission power | -15 ~ -8 dBm | -5 ~ 0dBm | |
| Reception sensitivity | -28 ~ -8dBm | -34 ~ -10 dBm | |
| Wavelength of transmission/reception | Tx : 1310nm, Rx : 1550nm | Tx : 1550nm, Rx : 1310nm | |
| Transmission distance | 15km | 40km | |
| Interface | SFP Type | SFP Type | |
| Ethernet | Line velocity | 10 / 100Mbps | |
| Duplex | Half / Full Duplex | ||
| Transmission method | TCP/IP | ||
| Transmission distance | 100m(Category 5 UTP) | ||
| Interface | Ethernet | ||
| Power supply | Power source | AC Free Voltage(100 ~ 240VAC) | |
| Power consumption | Less than 4W | ||
| Size | Weight | Less than 0.7Kg | |
| HxWxD | 33 X 205 X 170(mm) | ||
