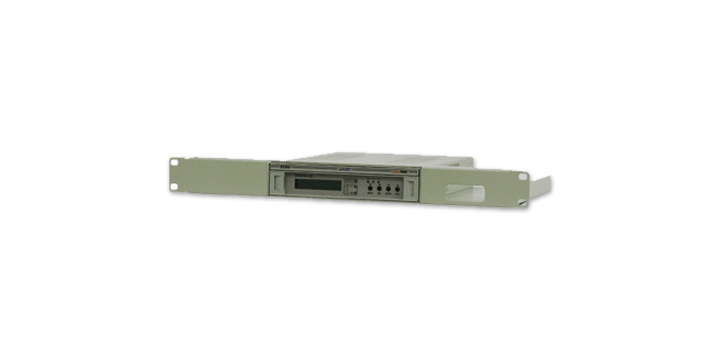

DS1E(Nx)-LD
- Introduction of product

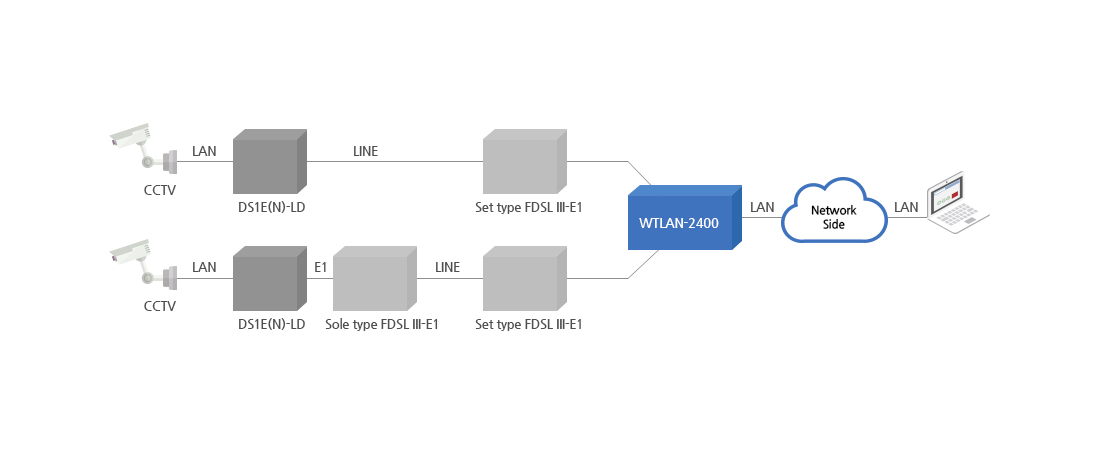

- DS1E(N)-LD is the device to transmit Ethernet data of maximum 2.048Mbps to high rank 2DS1E(N)-L device with existing DS1E network.
- Characteristice of product
- Self diagnosis is possible without measuring instrument through various LoopBack and TPG.
- Current state of device can be monitored through LED.
- Performance monitoring data (PM) and low power consumption
- Applied power : AC 110~220 Free Voltage
- Remote control function with which subscriber side device can be controlled at remote location
| Item | Standard | ||
|---|---|---|---|
| DS1E | Transmission velocity | At the time of Frame Mode : 1.920Mbps At the time of Unframe Modez : 2.048Mbps |
|
| Type of signal | E1(2.048Mbps ± 50ppm) ITU-T G.703 | ||
| Line Code | HDB3 | ||
| Frame | Unframed, Framed(CRC4 On/Off function) | ||
| Clock Mode | Internal, Receive | ||
| Interface | Wrapping terminal | ||
| Ethernet | Line velocity | 10 / 100Mbps | |
| Duplex | Half / Full Duplex | ||
| Transmission method | TCP/IP | ||
| Transmission distance | 100m(Category 5 UTP) | ||
| Interface | Ethernet | ||
| Power supply | Power source | AC Free Voltage(100 ~ 240VAC) | |
| Power consumption | Maximum 60Watts ( When shelves are fully mounted) | ||
| Size | HxWxD | 177 X 483 X 379(mm) | |
