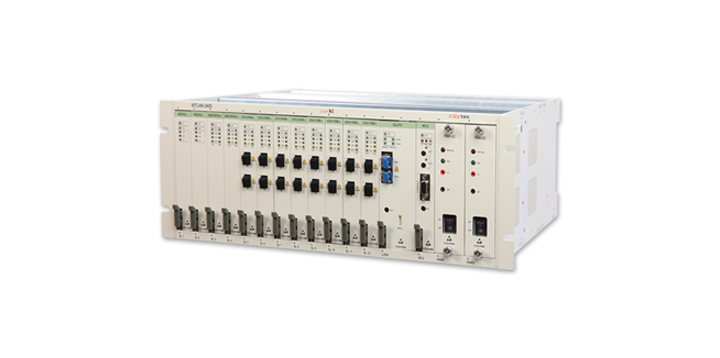

WTLAN-2400

Introduction of product: WTLAN2400 is the device of transmitting CCTV image signals (Ethernet) which have been received from subscriber to high rank device side with Fast 1Gb/100M after concentrating them as L2 signal at collection type device through copper wire, DS1E and optical line.
Subscriber with maximum 24 units can be accommodated, and traffic control is possible through velocity limit for each subscriber.

Characteristice of product: Conform to SDH & PDHH technical standard of ITU-T; Providing optimum unit with existing network; Self diagnosis is possible without measuring instrument through various LoopBack and TPG.; Remote control function with which subscriber side device can be controlled at remote location; Mixed accommodation of copper wire and optical unit in the identical SHELF is possible.; Providing performance monitoring data (PM); COT shelf is designed with the shape which can be installed at 19” Rack.; Higher reliability and low power consumption; Current state of device can be monitored through LCD & LED.; Remote control function with which subscriber side device can be controlled at remote location; Each item of COT is comprised of the unit with the type of Plug-In method with which replacement is easy at the time of failure.

Specification of product

Item		Standard
L2SW-FX	Type	B(For 15km)	C(For 40km)
	Line velocity	155.520Mbps	155.520Mbps
	Transmission power	-15 ~ -8 dBm	-5 ~ 0dBm
	Reception sensitivity	-28 ~ -8dBm	-34 ~ -10 dBm
	Wavelength of transmission/reception	1310nm	1310nm
	Transmission distance	15km	40km
	Interface	SC Type	SC type
L2SW-TX	Line velocity	100Mbps
	Duplex	Full Duplex
	Transmission distance	100m(Category 5 UTP)
	Interface	Ethernet
Power supply	Power source	-48VDC(-42.5 ~ -56.5VDC)
Power supply	Power consumption	2.08A 100Watts ( When shelves are fully mounted)
Size	HxWxD	177 X 483 X 379(mm)
CIT Interface	RJ45 LAN or RS-232C Console

Accommodation unit

Classification	Name of model	Description
Common section	PWR-DC	Supply DC inlet power to each unit.
Common section	MCU	Conduct main control of entire SHELF.
UpLink	GL2-FX	Optically tranmit with 1Gb of signals received from subscriber to high rank network by concentrating them into L2 signal, and perform the reverse function.
	L2SW-FX	Optically tranmit with 100M of signals received from subscriber to high rank network by concentrating them into L2 signal, and perform the reverse function.
	GL2-TX	Tranmit with 1Gb Ethernet of signals received from subscriber to high rank network by concentrating them into L2 signal, and perform the reverse function.
	L2SW-TX	Tranmit with Ethernet of signals received from subscriber to high rank network by concentrating them into L2 signal, and perform the reverse function.
DownLink (COT)	2SHD(N)-2W	Transmit Ethernet signal to subscriber device of remote location by converting into SHDSL 2Wire signal, and perform the reverse function.
	2SHD(N)-4W	Transmit Ethernet signal to subscriber device of remote location by converting into SHDSL 4Wire signal, and perform the reverse function.
	2OIU-L	Transmit Ethernet signal to subscriber device of remote location by converting into Optic signal, and perform the reverse function.
	2OIU(N)-L	Transmit Ethernet signal to subscriber device of remote location by converting into Optic signal, and perform the reverse function.
	2DS1E(N)-L	Transmit Ethernet signal to subscriber device of remote location by converting into DSIE signal, and perform the reverse function.
	4DS1E-L	Transmit Ethernet signal to subscriber device of remote location by converting into DSIE or Optic signal, and perform the reverse function.
RT	SHD(N)-2WD	Transmit Ethernet signal to COT device of remote location by converting into SHDSL 2Wire signal, and perform the reverse function.
	SHD(N)-4WD	Transmit Ethernet signal to COT device of remote location by converting into SHDSL 4Wire signal, and perform the reverse function.
	OIU100B-LD	Transmit Ethernet signal to COT device of remote location by converting into Optic signal, and perform the reverse function.
	OIU(N)-LD	Transmit Ethernet signal to COT device of remote location by converting into Optic signal, and perform the reverse function.
	DS1E(N)-LD	Transmit Ethernet signal to COT device of remote location by converting into DSIE signal, and perform the reverse function.
	4DS1E-LD	Transmit Ethernet signal to COT device of remote location by converting into DSIE or Optic signal, and perform the reverse function.

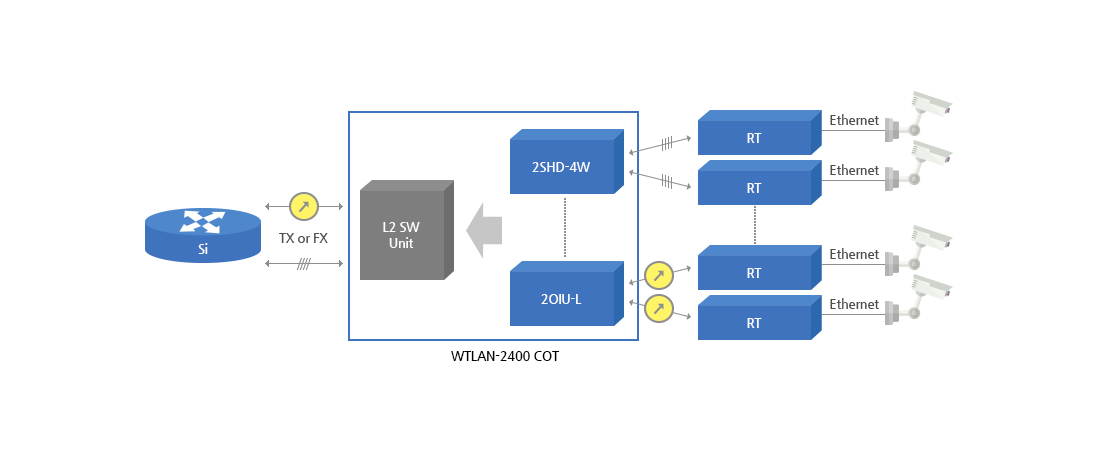

Application of product (network configuration diagram)
