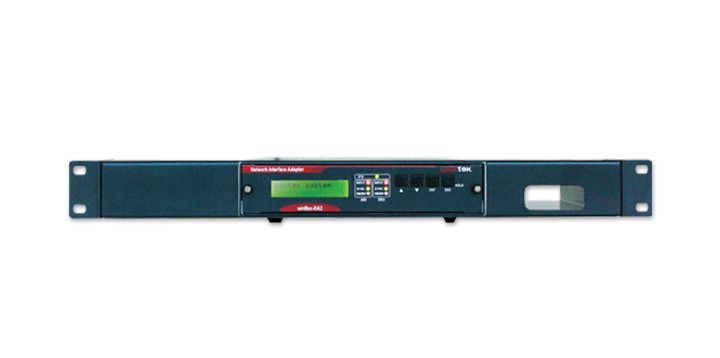

winBex-DA2
- Introduction of product

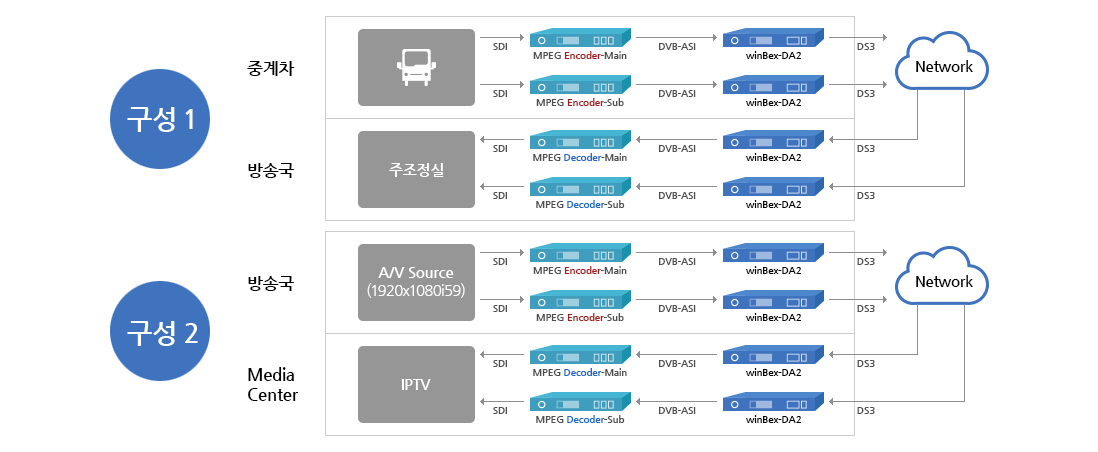

- WinBex-DA2 is a device that conducts function of transmission after mapping MPEG-2 Transport Stream (hereafter MPEG2 TS) that is being mapped in DVB-ASI signal in DS3 signal and inversely, function of sending after mapping MPEG-2 TS that is being mapped in DS3 signal in DVB-ASI signal.
- Characteristice of product
- Composing separate return circuit is unnecessary as TX and RX are possible in one device
- Mapping MPEG-2 TS in DS2 signal and de-mapping MPEG-2 TS from DS23 signal
- Mapping MPEG-2 TS in DVB-ASI and de-mapping MPEG-2 TS from DVB-ASI signal
- DVB-ASI Line Interface Monitor and Performance Monitor
- DS3 Line Interface Monitor and Performance Monitor
- DS3 FEC function
- Supporting all master method and slave method in DS3 mapping/de-mapping
- MPEG-2 TS Monitor
- Setting output packet size (When conducting master mode)
- Controlling and monitoring device by SNMP and web based GUI
- Supporting remote upgrade by Ethernet Interface for control
