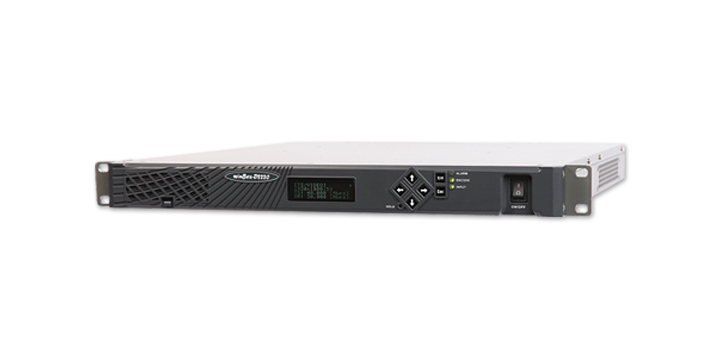

winBex-D2220

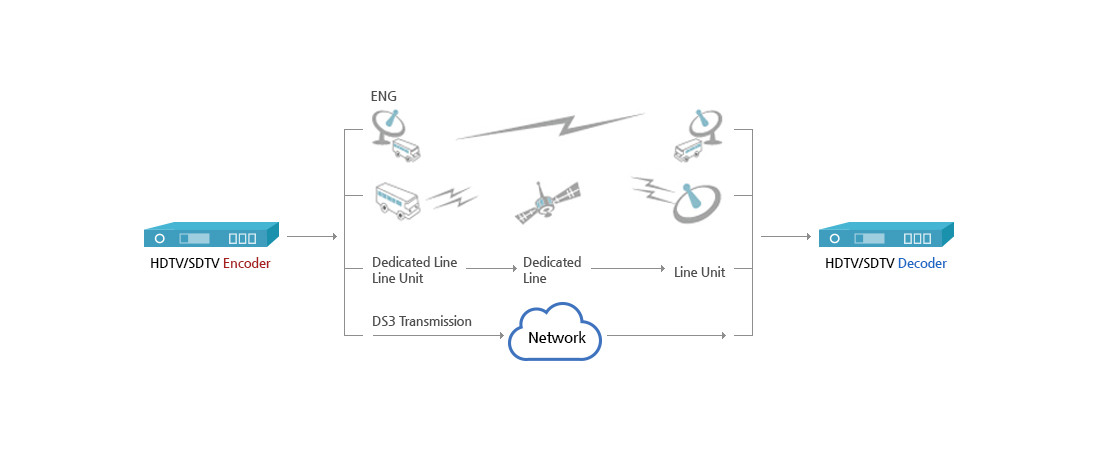

- Introduction of product
- WinBex-E2210/WinBex-D2210 is Encoder/Decoder device which provides service by converting HDTV & SDTV signals into DVB-ASI & DS3 signals with MPEG-2 method, and it supports various video formats of HD & SD, and it can pass through Dolby Digital 5.1CH & Dolby Digital-E signals. In addition, optimum application is provided through various functions such as Remote Update etc. via Closed Caption, HD-SD Down Converter and Web Based GUI.
- Characteristice of product
- MPEG-2 HDTV/SDTV Service
- Supporting various Video Formats of HDTV and SDTV
- Dolby Digital 5.1CH and Dolby Digital-E Pass Through
- Supporting Dolby(AC3 1/0, AC3 2/0)
- Closed Caption (SMPTE333, SMPTE334) Service
- HD-SD Down Converter function
- FEC function of DS3
- Monitoring is possible during service because of duplication of port
- Device control and monitoring function through SNMP and Web Based GUI
- Remote Upgrade function through Ethernet Interface
| Encoder | Decoder | SPEC | |
|---|---|---|---|
| Video | Input Format | Output Format | HD-SDI(SMPTE 292M, SMPTE 296M), SD-SDI(SMPTE 259M) |
| Encoding Format | Decoding Format | MPEG-2 | |
| Profile / Level | HD : MP@HL, 422P@HL / SD : MP@ML, 422P@ML | ||
| Video Format | 1080i : 1920/1440x1080 720p : 1280x720 576i : 720x576 480i : 720x480 |
||
| Frame Rate | 1080i : 50/59.94/60, 720p : 50/59.94/60 576i : 25, 480i : 59.94 |
||
| Video Rate | HD: 10 ~ 40Mbps SD: 3 ~ 15Mbps(MP), 3 ~ 40Mbps(422) |
||
| SD Aspect Ratio | HD: 16:9, SD: 16:9 / 4:3 | ||
| Delay | - | Normal / Low Delay | |
| Closed Caption | Encoder: SMPTE 333M / SMPTE 334M Decoder: SMPTE 334M |
||
| Audio | Input Format | Output Format | Embedded Audio : 8ch, AES/EBU : 8ch |
| Encoding Format | Decoding Format | MPL2-Mono/Dual Mono/Joint Stereo/Stereo SMPTE302 2/4/6/8Ch AC3(1/0), AC3(2/0) Pass Through(Dolby-E/Dolby Digital 5.1Ch) |
|
| Input Analog Audio | Output Analog Audio | 2Ch(L/R), Impedance: 600Ω or 20kΩ | |
| System | Output Stream Type | Input Stream Type | MPEG-2 TS(188/204/208 bytes) |
| Output Interface | Input Interface | DVB-ASI, DS3(FEC), IP(Option) | |
| Control | Local Operation | Front Panel Navigation Key | |
| Remote Operation | EMS, Web/GUI | ||
| Internal Test Signal | Video: Color Bar, Audio Tone: 1KHz (-18dB/-20dB) |
||
| Dimension(WxHxD) | 482mm x 44mm x 480mm (1-RU) | ||
| Weight | 4.5kg | ||
| Operating Temperature | 0℃ ~ +50℃ | ||
| Power Consumption | ≤50Watt (@220VAC) | ||
| Power Source | AC 100 ~ 240V(Free Voltage) | ||
