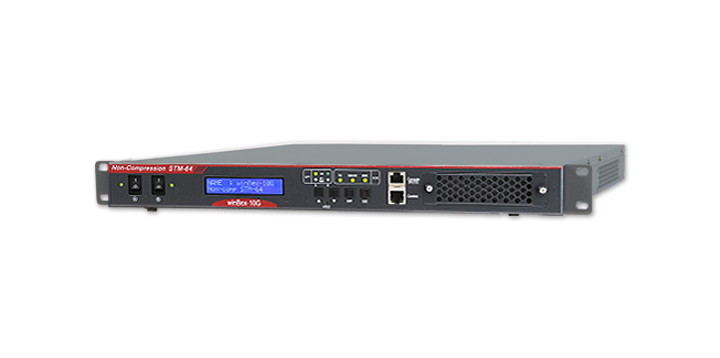

winBex-10G
- Characteristice of product

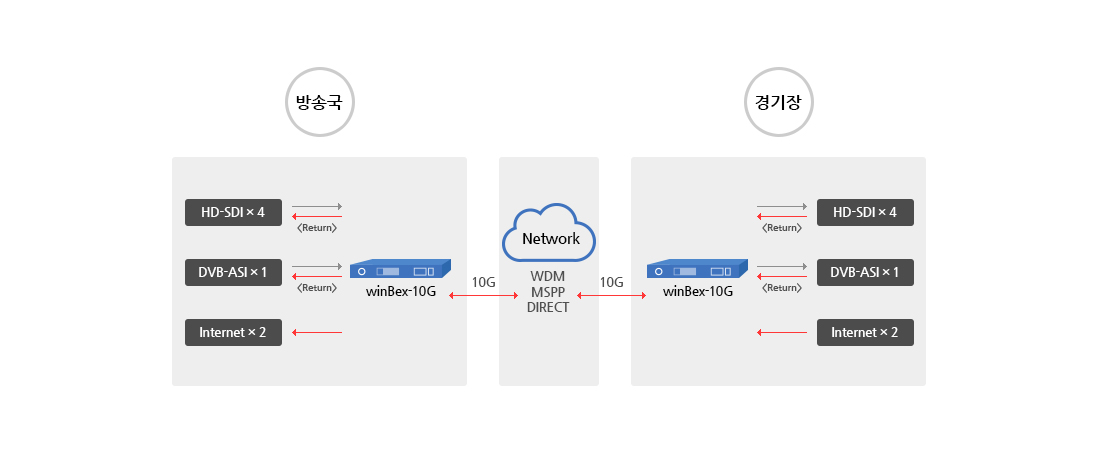

- Broadcasting/internet service is all possible by one device
- Composing separate return circuit is unnecessary as transmission and reception are all possible in one device
- Multiplexing/ demultiplexing HD-SDI, DVB-ASI, and Ethernet signal by STM-1 signal
- Supporting dual structure of line by STM-16 optical signal
- Possible sending maximum 80Km when switching XFP type optical module
- Power module is composed of dual structure in load sharing system that removal/installation is possible
- In case of power, selecting AC (Free Voltage)/DC (-48V) is possible
- Controlling device and monitor are possible by EMS and web based GUI
- Supporting remote upgrade by ethernet interface for control
- Controlling and monitoring remote device is possible by in band DCC
| SMPTE 292M, 75 Ohm BNC |
| MPEG-2 TS, 75 Ohm BNC |
| STM-64(9.95328Gbps) |
| Front key pad for device control |
| Control by EMS and web based GUI in connection with PC |
| 437[mm] x 44[mm] x 430[mm] (19" Rack Type, 1-RU) |
| 5Kg |
| 0℃ ~50℃ |
| AC Free voltage (100~240V), Power consumption 50 [Watt] |
