winBex-10000
- Characteristice of product

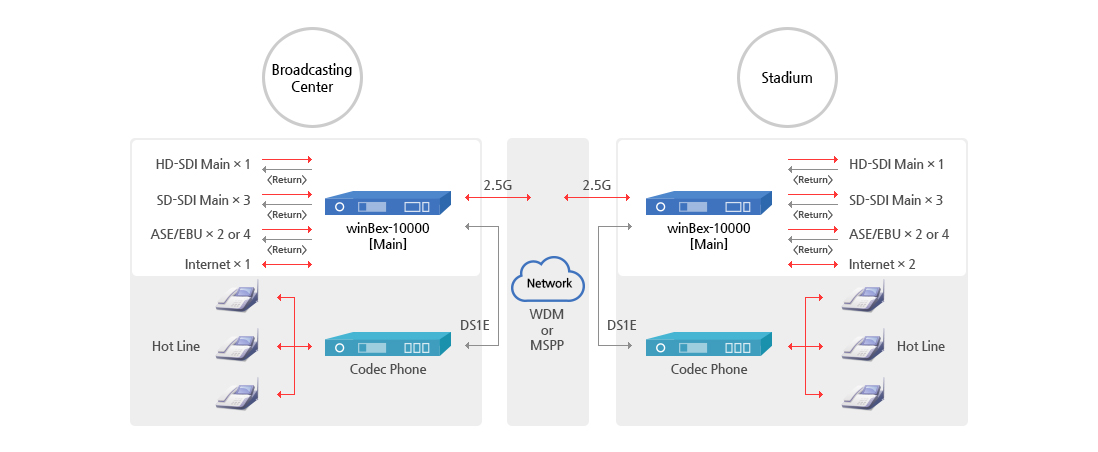

- Broadcast in a single device / Internet / Hot Line (Voice) service is all
- In one of the devices can both transmit and receive a separate line configuration is unnecessary Return
- HD-SDI, SD-SDI, DVB-ASI, AES / EBU, Ethernet and E1 signals into STM-16 signal multiplexing / demultiplexing
- E1 line is connected to the device attached devices (Codec Phone) regular telephone up to three (TD method) Hot line configuration by connecting
- STM-16 optical signal of the track redundancy support
- SFP Type Optic Module replacement can be sent over 40Km
- Power module of the ride / mount that can be configured as load-sharing redundancy of the way
- The power AC (Free Voltage) / DC (-48V) is available, select
- Web based GUI to control and monitor the device is in the remote
- Remote upgrade through Ethernet Interface Control Support
- In band DCC via the remote control and monitoring of the equipment
| Interface | SPEC | |
|---|---|---|
| Video | HD-SDI | SMPTE 292M, 75 Ohm BNC |
| SD-SDI | SMPTE 259M, 75 Ohm BNC | |
| Stream | DVB-ASI | MPEG-2 TS |
| Audio | AES/EBU | 2Audio/4DSX: AES/EBUx2(4ch) 4Audio: AES/EBUx4(8ch) |
| Optic | SFP | STM-16(2.5Gbps) |
| Control | Key pad | Front Key Pad for equipment control |
| Ethernet | Control through Web based GUI connecting to PC | |
| Dimension(WxHxD) | 437[mm] x 44[mm] x 430[mm] (1-RU), 19 inch Rack Type |
|
| Weight | 4.9Kg | |
| Operating Temperature | 0℃ ~+50℃ | |
| Power Source | AC Free voltage (100~240V), power consumption 44{Watt} | |
