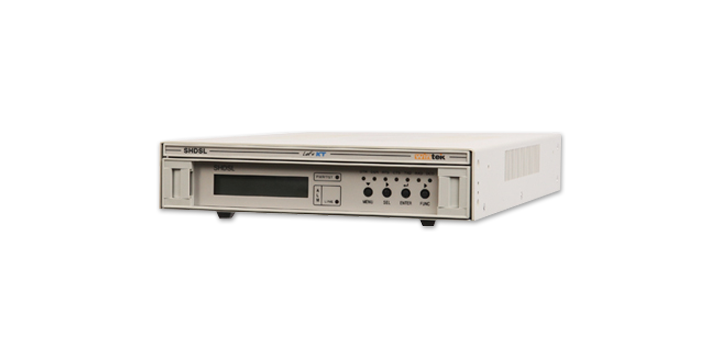

SHDSL
- Introduction of product

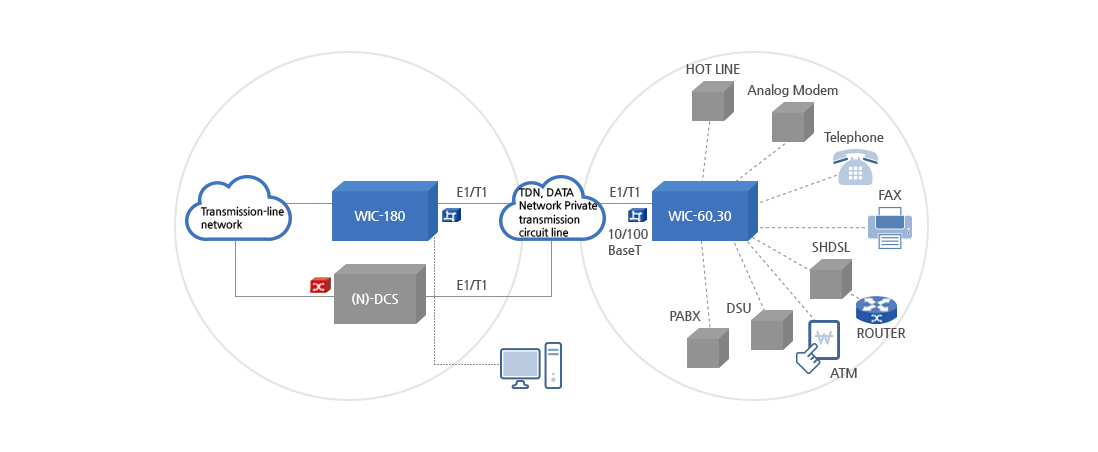

- VM(Voice Mux) of Wintech System Co. Ltd. is installed at subscriber network as integrated terminal device for subscriber circle and it is the device of transmitting by accommodating existing voice grade signal of subscriber, low velocity grade digital data, high velocity grade digital data and even SHDSL data and multiplexing them into DS1E(or DS1) signal. In addition, optimum system can be constructed by dividing the system into for 180 subscribers (WTC-180), 60 subscribers (WTC-60), and 30 subscribers (WTC-30) in accordance with the installation environment and subscriber capacity.
- Characteristice of product
- Accommodation of FE1 grade circuit is possible (maximum 1 circuit)
- Self setup and monitoring are possible through front LCD screen and button
- Supporting various Loopback Test for circuit test
- Device setup and change are simple with the menu system of tree structure.
- Selection of line with 2/4 wire type (2W/4W) in accordance with transmission velocity
| Item | Standard | |
|---|---|---|
| V.35 | Transmission velocity | 64K ~ Maximum 1984Kbps |
| Line configuration mode | 4 wire type or 2 wire type | |
| Line Code | HDB3 | |
| Transmission distance | Maximum 3.5 km / 0.4mm Line | |
| Signal standard | ITU-T V.35 /G.732 / G.733 | |
| Interface | V.35 | |
| Power supply | Power source | AC Free Voltage(100 ~ 240VAC) |
| Power consumption | 1A , 5Watts | |
| Size | HxWxD | 177 X 483 X 379(mm) |
