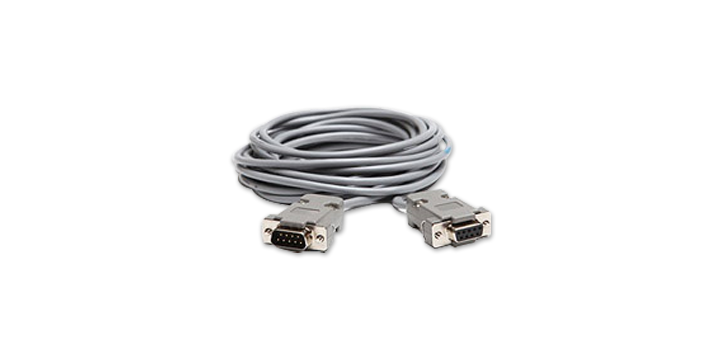

RS-232C Console Cable
- Introduction of product
- This is the cable for GUI connection of the products from our company and other setup.
- Characteristice of product
- This can be used commonly for the products from our company. (Straight Cable)
| Item | Standard | ||
|---|---|---|---|
| Connector | RS232C DB9 | ||
| Length of line | 4.8 Meter | ||
| Pin specification | Pin Number | Code | Description |
| 1, 4, 6, 7, 8, 9 | NC | No Connection | |
| 2 | RXD | Sending of data to DTE device | |
| 3 | TXD | Reception of data from DTE device | |
| 5 | SG | Signal Ground | |
- Applied SHELF
- Total equipments
