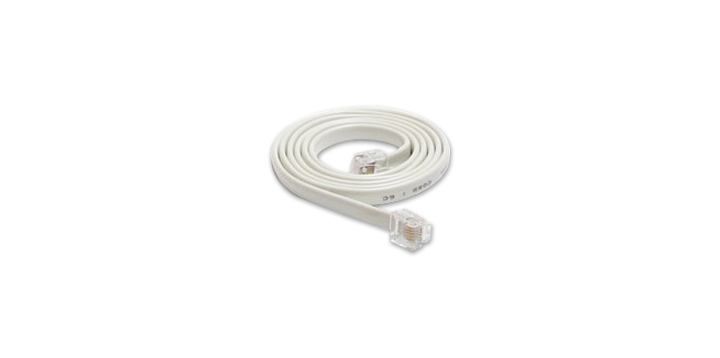

Intra Cable
- Introduction of product
- This is the cable used for configurating Intra between Shelves of our product, and control of multiple units of Shelf will be enabled with one PC through the Intra configuration.
- Characteristice of product
- Control of multiple units of Shelf is possible with one PC through the Intra configuration. (Straight Cable)
| Item | Standard | ||
|---|---|---|---|
| Connector | 6 Pin Modular Jack | ||
| Length of line | 1 Meter | ||
| Pin specification | Pin Number | Code | Description |
| 1 | INTRA-T | Blanced In/Out Tip | |
| 2 | INTRA-R | Blanced In/Out Ring | |
| 3, 4, 5 | NC | No Connection | |
| 6 | SG | Signal Ground | |
- Applied SHELF
- FDSLII, FDSLIII, OCSU, FMUX-12, FMUX-24
- WTLAN2400
- DS1(E) transfer device, DS3 transfer device
- FE1MUX
- WTM060, WTM020
