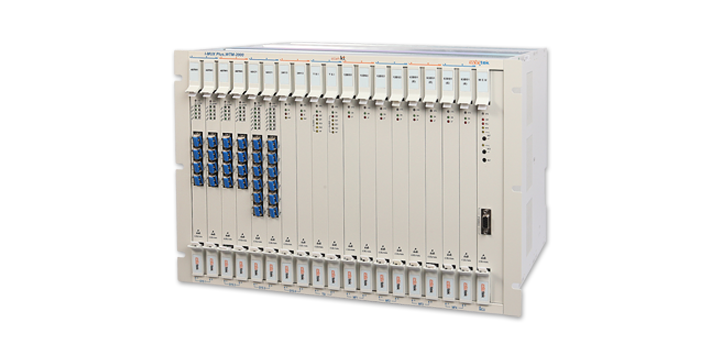

WTM2000
- Introduction of product

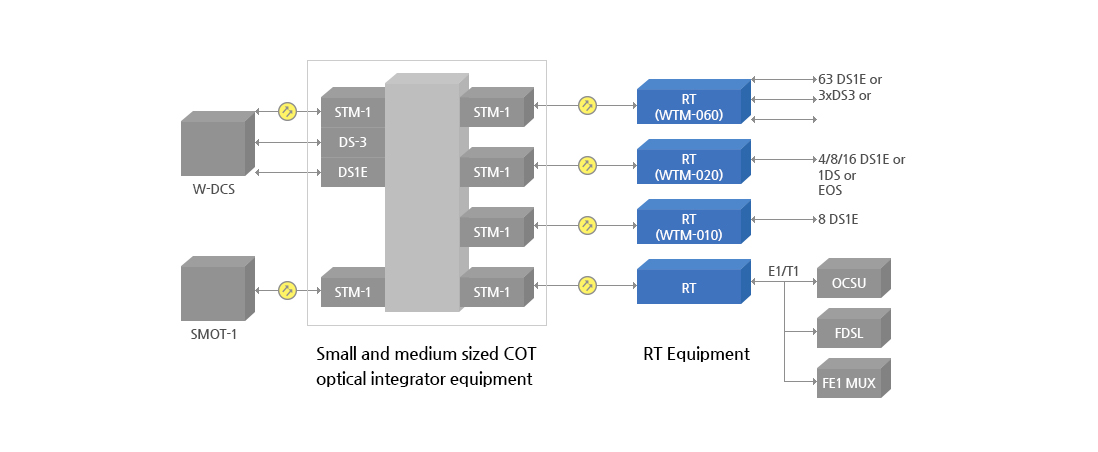

- As the small and medium type optical integration device (I-MUX Plus), this is comprised of branch office side device (COT) and subscriber side device (RT), and subscriber side device accommodates dedicated circuit with 4/8/16DS1(E), 1DS3, 3DS3, 63DS1(E) grade and transmits these optically by multiplexing them, and branch office side device performs demultiplexing of them and circuit distribution function and also conducts the connecting function to network with STM-1 signal and transmission fuction. In addition, this is the device with which DS1(E), DS3 signals can directly be connected to branch office for operation.
- Characteristice of product
- STM-0/STM-1 interface conformed to ITU-T SDH standard
- Various subscriber service interface (DS1, DS1E, DS3, M13) with single platform
- Providing PtMP (Point to Multi-Point) method
- Supporting RT subscriber interface of 16~24 units for each single COT capacity
- Non-Blocking circuit distribution function with VC11/VC12/VC3 unit by utilizing the switching technology of SDH basis
- Provision for AU-3 & AU-4 multiplexing function is possible by connecting STM-1 signal to Network
- Fault Location tracing is simple as LoopBack is possible with the unit of VC11/VC12/VC3 at TSI unit
- Mixed accommodation of STM-0(OC1), STM-1 signal is possible.
- Duplicated structre of main unit and automatic protection transfer function
- Operation and configuration state of system through GUI, transfer state, and monitoring & control function
- Self diagnosis through various LoopBack test functions is simple.
- Visible/audible alarm and state information indication function by LED
| Item | Standard | ||
|---|---|---|---|
| Clock Mode(TSI) | Internal, External(DOTS), Receive | ||
| STM-1 | Type | B(For 15km) | C(For 40km) |
| Line velocity | 155.520Mbps | 155.520Mbps | |
| Source Type | MLM | MLM | |
| Maximum RMS width | 7.7nm | 3nm | |
| Transmission power | -15 ~ -8 dBm | -5 ~ 0dBm | |
| Reception sensitivity | -28 ~ -8dBm | -34 ~ -10 dBm | |
| Wavelength of transmission/reception | 1310nm | 1310nm | |
| Transmission distance | 15km | 40km | |
| Optical consumption | 8.2dB | 10dB | |
| Interface | SFP Type | SFP Type | |
| OC1 STM-0 |
Type | For 15km | For 40km |
| Line velocity | 51.84Mbps | 51.84Mbps | |
| Transmission power | -15 ~ -8 dBm | -5 ~ 0dBm | |
| Reception sensitivity | -28 ~ -8dBm | -34 ~ -10 dBm | |
| Source Type | MLM | MLM | |
| Maximum RMS width | 7.7nm | 3nm | |
| Wavelength of transmission/reception | 1310nm | 1310nm | |
| Transmission distance | 15km | 40km | |
| Interface | SFP Type | SFP Type | |
| Power supply | Power source | -48VDC (-42.5 ~ -56.5VDC) | |
| Power consumption | 3.33A 160Watts ( When shelves are fully mounted) | ||
| Size | HxWxD | 308 X 481 X 375(mm) | |
| CIT Interface | RJ45 LAN | ||
| Classification | Name of model | Description |
|---|---|---|
| Common section | PWR-DC | Supply DC inlet power to each unit. |
| MCU | Conduct main control of entire SHELF. | |
| TSI | Conduct circuit distribution (X-CON) function and clock supply. | |
| Uplink | 4STM1 | Connect high rank network side with STM-1 signal of low rank subscriber side. |
| 3M13 | Connect high rank network side with multiplexed DS3 signal. | |
| 12DS3 | Connect high rank network side with DS3 signal. | |
| 63DS1E | Connect high rank network side with DS1E signal. | |
| Downlink | 4STM1 | Connect with STM-1 signal of low rank subscriber side. |
| 12DS3 | Connect to low rank subscriber side with DS3 signal. | |
| 3M13 | Connect to low rank subscriber side with multiplexed DS3 signal.. | |
| 6OC1 | Connect to subscriber side WTM020 with OC1 signal. |
