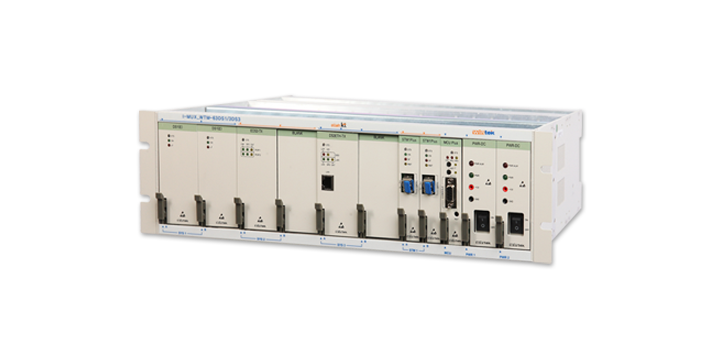

WTM-060 plus
- Introduction of product
- WTM060 is the device to tranmit various subscriber signals (DS1, DS1E, DS3, EOS, Ethernet) with STM-1 signal by multiplexing them.

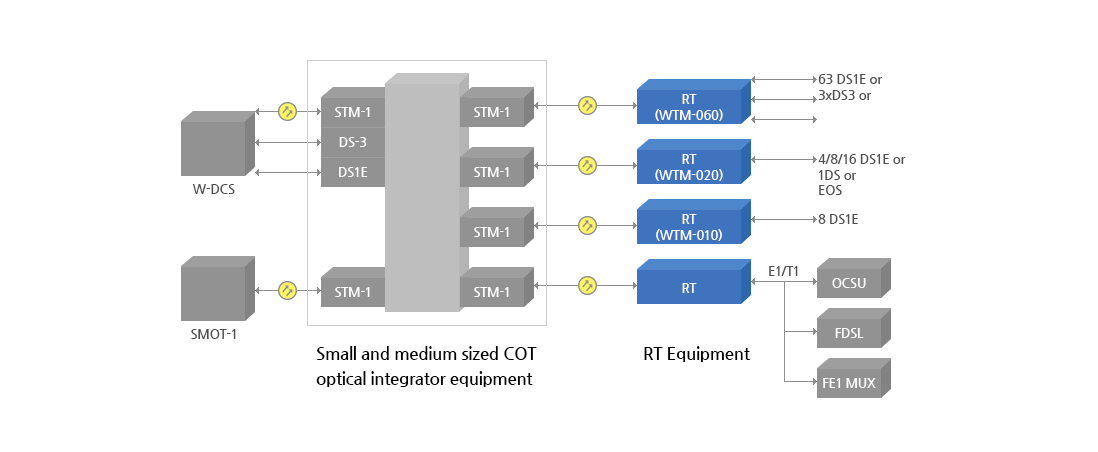

This is the device of performing demulitplexing and circuit distribution function by connecting to branch office device (COT) with STM1 signal.
This device is divided into WTM-3DS3 and WTM-63DS1(E)/3DS3.
- Characteristice of product
- Conforming to the technical standards of SDH & PDH of ITU-T
- Accommodation of exclusive use of DS3 signal of WTM-3DS3 and mixed use of DS3/DS1(E) signal of WTM-63DS1/3DS3 and ethernet signal are possible.
- Duplication structure of main unit and automatic protection transfer function
- System operation and monitoring function through GUI
- Remote control function through DCC
- Self diagnosis function through various LoopBack and performance information
- State information indication function through front LED and audible alarm
| Item | Standard | ||
|---|---|---|---|
| STM-1 | Type | B(For 15km) | C(For 40km) |
| Line velocity | 155.520Mbps | 155.520Mbps | |
| Transmission power | -15 ~ -8 dBm | -5 ~ 0dBm | |
| Reception sensitivity | -28 ~ -8dBm | -34 ~ -10 dBm | |
| Wavelength of transmission/reception | 1310nm | 1310nm | |
| Transmission distance | 15km | 40km | |
| Source Tupe | (MLM) | (MLM) | |
| Interface | SFP Type 2Core | SFP Type 2Core | |
| WDM 1Core | COT/1550nm RT/1310nm | COT/1550nm RT/1310nm | |
| Interface | SFP Type 1Core | SFP Type 1Core | |
| Clock Mode | Internal, Receive | ||
| DS1E | Type of signal | E1(2.048Mbps ± 50ppm) ITU-T G.703 | |
| Line Code | HDB3 | ||
| Reception impedance | 120Ω ± 5% | ||
| Impedence | 120Ω ± 5% | ||
| Interface | Wrapping terminal | ||
| DS1 | Type of signal | T1(1.544Mbps ± 50ppm) ITU-T G.703 | |
| Line Code | AMI / B8ZS | ||
| Reception impedance | 100Ω ± 5% | ||
| LBO | Setting up to 5 stages (0~200m) | ||
| Impedence | 100Ω ± 5% | ||
| DS3 | Type of signal | DS3(44.736Mbps ± 20ppm) ITU-T G.703 | |
| Frame | Unframe, M13 Frame | ||
| Line Code | B3ZS | ||
| Reception impedance | 75Ω ± 5% | ||
| LBO | Setting up to 5 stages (0~200m) | ||
| Interface | Coaxial, BNC Connector | ||
| EOS | Type of signal | Ethernet (section 2 of IEEE 802.3 2002 edition) | |
| Transmission velocity | 2.176Mbps per VC (maximum 21 units of VC) | ||
| Frame | GFP (ITU-T G.7041) | ||
| Signal capacity adjustment method | LCAS(ITU-T G.7042) | ||
| Interface | RJ-45 LAN Port | ||
| Power supply | Power source | -48VDC (-42.5 ~ -56.5VDC) or AC Free Voltage(100 ~ 240VAC) |
|
| Power consumption | 2.08A 100Watts ( When shelves are fully mounted) | ||
| Size | HxWxD | 133 X 483 X 379(mm) | |
| CIT Interface | RJ45 LAN or RS-232C Console | ||
| Classification | Name of model | Description |
|---|---|---|
| Common section | PWR-AC | Supply AC inlet power to each unit. |
| PWR-DC | Supply DC inlet power to each unit. | |
| MCU | Conduct main control of entire SHELF. | |
| 1STM1 | Transmit subscriber signal received from channel section by multiplexing it into STM-1 signal, and performs the reverse function. | |
| Channel | DS1(E) | Receive DS1(E) subscriber signal of maximum 21 units and transmit it with 1STM-1 unit, and performs the reverse function. |
| DS3 | Receive DS3 subscriber signal of maximum 1 unit and transmit it with 1STM-1 unit, and performs the reverse function. | |
| DS3-ETH | Receive Ethernet subscriber signal of maximum 1 unit and transmit it with 1STM-1 unit, and performs the reverse function. | |
| EOS2-TX | Receive Ethernet signal of maximum 2 units and transmit it with 1STM-1 unit, and performs the reverse function. | |
| EOS2-FX | Receive Ethernet signal of maximum 2 units and transmit it with 1STM-1 unit, and performs the reverse function. |
