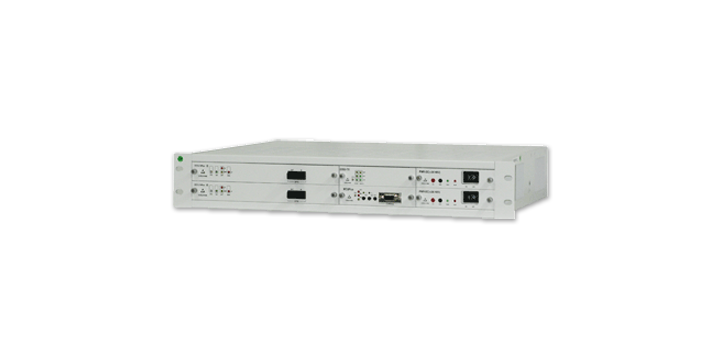

WTM020

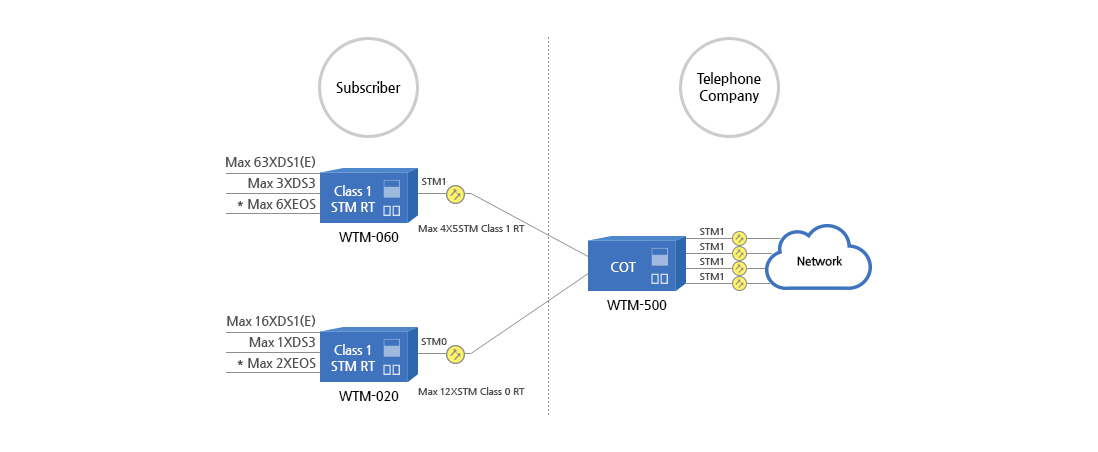

- Introduction of product
- WTM020 is the device of transmitting various signals of subscriber (DS1, DS1E, DS3, EOS) by multiplexing them into OC1 signal. In addition, optimum system can be constructed by dividing the unit in accordance with subscriber capacity and type of signal.
- Characteristice of product
- Duplicated structre of main unit and automatic protection transfer function
- System operation and monitoring function through GUI
- Remote control function through DCC
- Self diagnosis fuction through various LoopBack and performance information
- State information indication function through front LED and audible alarm
| Item | Standard | ||
|---|---|---|---|
| STM-1 | Type | B(For 15km) | C(For 40km) |
| Line velocity | 51.84Mbps | 51.84Mbps | |
| Transmission power | -15 ~ -8 dBm | -5 ~ 0dBm | |
| Reception sensitivity | -28 ~ -8dBm | -34 ~ -10 dBm | |
| Wavelength of transmission/reception | 1310nm | 1310nm | |
| Transmission distance | 15km | 40km | |
| Interface | SC Type | SC Type | |
| Clock Mode | Internal, Receive | ||
| DS1E | Type of signal | E1(2.048Mbps ± 50ppm) ITU-T G.703 | |
| Line Code | HDB3 | ||
| Impedence | 120Ω ± 5% | ||
| Interface | Wrapping terminal | ||
| DS1 | Type of signal | T1(1.544Mbps ± 50ppm) ITU-T G.703 | |
| Line Code | AMI / B8ZS | ||
| Impedence | 100Ω ± 5% | ||
| LBO | Setting up to 5 stages (0~200m) | ||
| DS3 | Type of signal | DS3(44.736Mbps ± 20ppm) ITU-T G.703 | |
| Frame | Unframe, M13 Frame | ||
| Line Code | B3ZS | ||
| Impedance | 75Ω ± 5% | ||
| TX Level | Long / Short |
||
| Interface | Coaxial, BNC Connector | ||
| EOS | Type of signal | Ethernet (section 2 of IEEE 802.3 2002 edition) | |
| Transmission velocity | 2.176Mbps per VC (maximum 21 units of VC) | ||
| Frame | GFP (ITU-T G.7041) | ||
| 신호 용량 조절 방식 | LCAS(ITU-T G.7042) | ||
| Interface | RJ-45 LAN Port | ||
| Power supply | Power source | -48VDC (-42.5 ~ -56.5VDC) or AC Free Voltage(100 ~ 240VAC) |
|
| Power consumption | 1.04A 23Watts (When shelves are fully mounted) | ||
| Size | HxWxD | 177 X 483 X 379(mm) | |
| CIT Interface | RJ45 LAN or RS-232C Console | ||
| Classification | Name of model | Description |
|---|---|---|
| Common section | PWR-AC | Supply AC inlet power to each unit. |
| PWR-DC | Supply DC inlet power to each unit. | |
| MCU | Conduct main control of entire SHELF. | |
| Channel 부 | OC1L16 Plus | Transmit DS1(E) subscriber signal with maximum 16 units by multiplexing it into OC1 signal, and performs the reverse function. |
| OC1L8 | Transmit DS1(E) subscriber signal with maximum 8 units by multiplexing it into OC1 signal, and performs the reverse function. | |
| OC1L4 | Transmit DS1(E) subscriber signal with maximum 4 units by multiplexing it into OC1 signal, and performs the reverse function. | |
| OC1DS3 | Transmit DS3 subscriber signal with maximum 1 unit by multiplexing it into OC1 signal, and performs the reverse function. | |
| EOS2-TX | Transmit Ethernet signal with maximum 2 units by multiplexing it into OC1 signal through OC1L16 Plus, and performs the reverse function. | |
| EOS2-FX | Transmit Optic signal with maximum 2 units by multiplexing it into OC1 signal through OC1L16 Plus, and performs the reverse function. |
