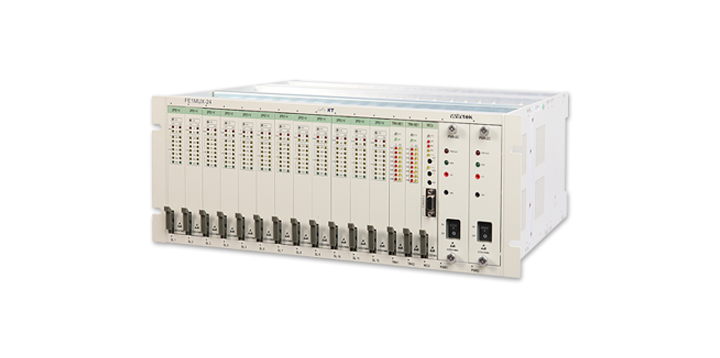

FE1-MUX24
- Introduction of product
- FE1MUX-24 is the device wich which NxDS0 subscriber signal can be multiplexed or demultiplexed into the DS-1(E) signal by accommodating up to the maximum of 12 sheets of subscriber unit, and with this device, DS1, DS1E & NxDS0 subscriber signal can separately be operated in accordance with the requirement.
- Characteristice of product
- Duplicated structre of main unit and automatic protection transfer function
- Supporting integrated control mode with which the device of maximum 240 units can remotely be controlled
- Self diagnosis is possible without measuring instrument through various LoopBack and TPG.
- Current state of device can be monitored through LED.

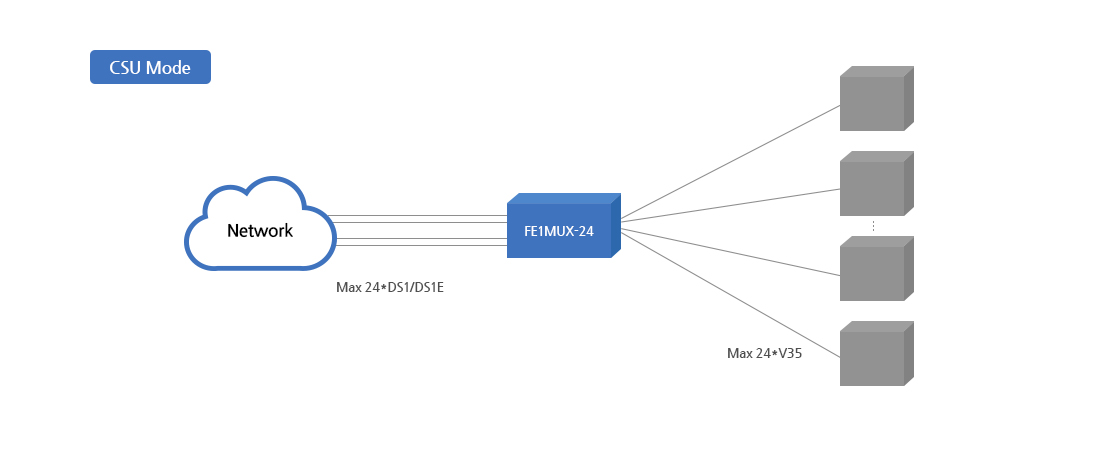

- Network can efficiently be constituted through the supporting of various modes (CSU/TRK-DSX/TRK-V.35).
| Item | Standard | ||
|---|---|---|---|
| DS1(T1) | Accommodation capacity | 2 x DS1 per unit | |
| Type of signal | T1(1.544Mbps ± 50ppm) ITU-T G.703 | ||
| Line Code | AMI / B8ZS | ||
| Frame | Unframed, SF, ESF | ||
| Clock Mode | Internal, External, Loop | ||
| LBO | Setting up to 5 stages (0~200m) | ||
| Impedence | 100Ω ± 5% | ||
| Interface | Wrapping terminal | ||
| DS1E(E1) | Accommodation capacity | 2 x DS1 per unitE | |
| Type of signal | E1(2.048Mbps ± 50ppm) ITU-T G.703 | ||
| Line Code | HDB3 / AMI | ||
| Frame | Unframed, Framed(TS16 On/Off, CRC4 On/Off function) | ||
| Clock Mode | Internal, External, Loop | ||
| Impedence | 120Ω ± 5% | ||
| Interface | Wrapping terminal | ||
| NxDS0 | Accommodation capacity | 2 x v.35 per unit | |
| Type of signal | V.35 | ||
| Velocity | 64kbps ~ 2.048Mbps | ||
| Clock Mode | Internal, External, Loop | ||
| Interface | V.35(34Pin) | ||
| Trunk(E1) | Accommodation capacity | Unit 당 8 X DS1E(E1) | |
| Type of signal | E1(2.048Mbps ± 50ppm) ITU-T G.703 | ||
| Line Code | HDB3 / AMI | ||
| Frame | Framed(TS16 On/Off, CRC4 On/Off function) | ||
| Clock Mode | Internal, Loop | ||
| Impedence | 120Ω ± 5% | ||
| Interface | Wrapping terminal | ||
| Power supply | Power source | -48VDC (-42.5 ~-56.56.5VDC), +24VDC or AC Free Voltage(100 |
|
| Power consumption | 1.2A 50Watts ( When shelves are fully mounted) | ||
| Size | HxWxD | 176 X 481 X 375(mm) | |
| CIT Interface | RJ45 LAN or RS-232C Console | ||
| Classification | Name of model | Description |
|---|---|---|
| Common section | MCU | Conduct main control of entire SHELF. |
| UpLink | TRK-2E1 | Perform the function of mulitplexing and demulitplexing by mapping DS0 grade subscriber signal to DS1E signal. |
| TRK-2T1 | Perform the function of mulitplexing and demulitplexing by mapping DS0 grade subscriber signal to DS1 signal. | |
| DownLink (COT) |
FE1-V | Transmit DS1E signal to subscriber at remote location by converting it into DSL signal, and perform the reverse process. |
