FDSL-R12
- Introduction of product

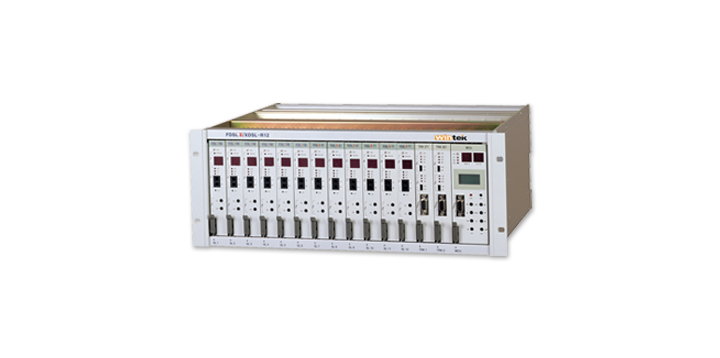

- For FDSL II-R12(Fractional Digital Subscriber Line II) device, in the case of 4 wire type, the signal which is comprised of the data with the maximum of 768Kbps can be transmitted up to the maximum of 5Km(0.4mm) without repeater, and the NxDS0 subscriber signal can be multiplexed or demultiplexed into the DS-1(E) signal by accommodating up to the maximum of 12 sheets of various DSL subscriber units, and this is the device with which NxDS0 subscriber signal can separately be operated in accordance with the requirement.
In addition, by utilizing E1/T1 unit, E1/T1 signal can be tranmitted up to the maximum of 4Km(0.4mm) without repeater.
- Characteristice of product
- In the case of 4 wire type, transmission is possible up to the maximum of 5km(0.4mm) without repeater
- Compatible connection with existing FDSU(64CAP) is possible.
- Self diagnosis is possible without measuring instrument through various LoopBack and TPG.
- Current state of device can be monitored through LCD & LED.
- Remote control function with which subscriber side device can be controlled at remote location

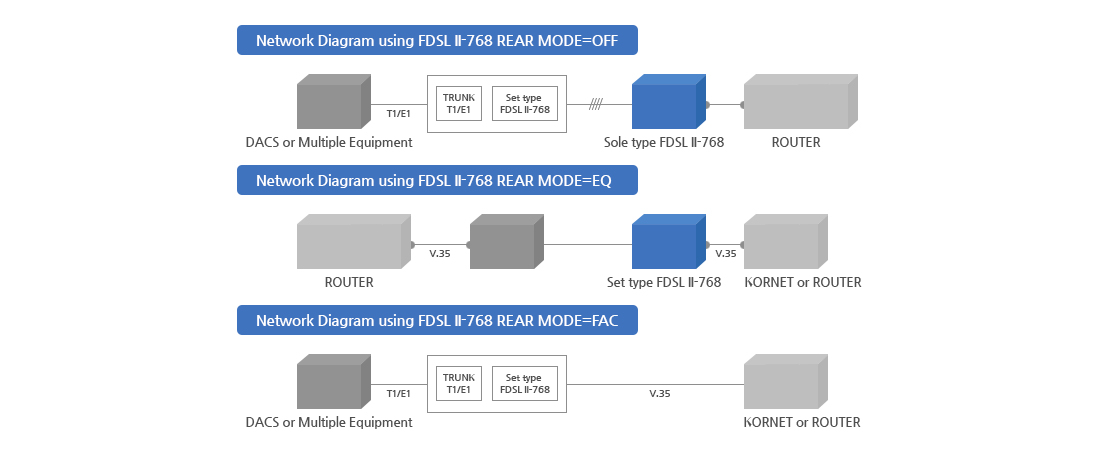

- Network can efficiently be constituted with multiplexing and demultiplexing function through Trunk Unit.
| Item | Standard | ||
|---|---|---|---|
| LOOP signal | Modulation method | FDSL Mode | FDSU Mode |
| 16CAP | 64CAP | ||
| Transmission mode | Full Duplex | Full Duplex | |
| Line type | 2Wire or 4Wire | 2Wire or 4Wire | |
| Line velocity | 400Kbps, 784Kbps | 784Kbps | |
| Transmission distance (0.4mm No Noise, No Bridge Tap) BER : Less than 1X10-7 |
4Wire 768Kbps : 5Km | 2Wire : 4Km 4Wire : 5Km |
|
| 2Wire 384Kbps : 5Km | |||
| 2Wire 768Kbps : 4Km | |||
| Line connection | 8 Pin Modular | ||
| Subscriber signal | Transmission velocity | Nx56bps or Nx64bps (N=1,2,3,4,6,8,12) | |
| Interface | RS-449(37Pin), RS-530(25Pin), V.35(34Pin) | ||
| Clock Mode | Internal, External(Trunk Clock), Loop | ||
| DS1(T1) | Accommodation capacity |
2 x DS1 per TRUNK Unit, 1 x DS1 per Channel Unit | |
| Type of signal | T1(1.544Mbps ± 50ppm) ITU-T G.703 | ||
| Line Code | AMI / B8ZS | ||
| Frame | SF / ESF | ||
| Clock Mode | Trunk : Internal, Loop | ||
| LBO | Setting up to 5 stages (0~200m) | ||
| Impedence | 100Ω ± 5% | ||
| DS1E(E1) | Accommodation capacity |
2 x DS1E per TRUNK Unit, 1 x DS1E per Channel Unit | |
| Line Code | E1(2.048Mbps ± 50ppm) ITU-T G.703 | ||
| Line Code | HDB3 / AMI | ||
| Frame | Framed(TS16 On/Off, CRC4 On/Off function) | ||
| Clock Mode | Trunk : Internal, Loop | ||
| Impedence | 120Ω ± 5% | ||
| Power supply | Power source | -48VDC(-42.5 ~ -56.5VDC) | |
| Power consumption | 1.5A 72Watts ( When shelves are fully mounted) | ||
| Size | HxWxD | 177 X 483 X 379(mm) | |
| CIT Interface | RS-232C Console | ||
| Classification | Name of model | Description |
|---|---|---|
| Common section | MCU | Conduct main control of entire SHELF. |
| UpLink | TRK-2E1 | Perform the function of mulitplexing and demulitplexing by mapping DS0 grade subscriber signal to DS1E signal. |
| TRK-2T1 | Perform the function of mulitplexing and demulitplexing by mapping DS0 grade subscriber signal to DS1 signal. | |
| DownLink (COT) |
FDSLII-E1C | Transmit DS1E signal to subscriber at remote location by converting it into DSL signal, and perform the reverse process. |
| FDSLII-T1C | Transmit DS1 signal to subscriber at remote location by converting it into DSL signal, and perform the reverse process. | |
| FDSLII-768C | Transmit DS0 grade signal to subscriber at remote location by converting it into DSL signal, and perform the reverse function. | |
| RT | FDSLII-E1D | Transmit DS1E signal to COT at remote location by converting it into DSL signal, and perform the reverse process. |
| FDSLII-T1D | Transmit DS1 signal to COT at remote location by converting it into DSL signal, and perform the reverse process. | |
| FDSLII-768D | Transmit DS0 grade signal to COT at remote location by converting it into DSL signal, and perform the reverse function. |
