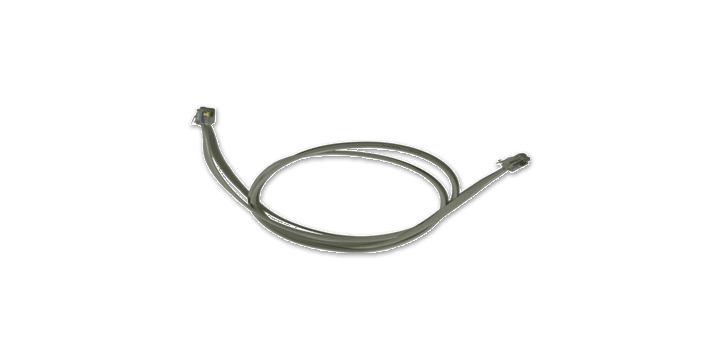

Fan Cable
- Introduction of product
- By connecting Shelf, a company product, to Fan with a cable, it is possible to monitor the operated condition through GUI program.
- Characteristice of product
- Possible to monitor the condition of the connected Pan by Pan Cable construction (Cross Cable)
| Item | Standard | ||
|---|---|---|---|
| Connector | 6 Pin Modular Jack | ||
| Length of line | 35cm | ||
| Pin specification | Pin Number | Abbreviation | Meaning |
| 1 | ALM1 | Fan1 Alarm | |
| 2 | ALM2 | Fan2 Alarm | |
| 3 | ALM3 | Fan3 Alarm | |
| 4,5 | N.C | No Connection | |
| 6 | GND | Signal Ground | |
- Applied SHELF
- Total equipments
