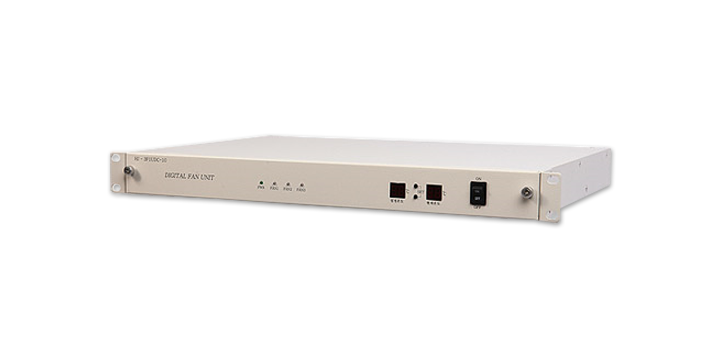

FAN (DC +24V Type)
- Introduction of product
- FAN is a device for maintenance of temperature in SHELF with appropriate temperature by releasing heat occurred in shelf to the rear by installing at the upper SHELF
- Characteristice of product
- Function of automatic temperature control by user setting value
- Alarm transfer function with connected SHELF when there is problem in operating FAN
- Monitoring current conditions of device by segment and LED
- Monitoring current conditions of device by LED
| Item | Standard | ||
|---|---|---|---|
| Power | Used Power | +24VDC (+18 ~ +36VDC) | |
| Power Consumption | Up to 60Watts | ||
| Size | HxWxD | 177 X 483 X 379(mm) | |
| Interface Connecting SHELF | 6 Pin Modular Jack | ||
